Woodworking CNC Router, SL-1325M-CNC engraving machine

Applicable industries: wooden crafts, woodworking furniture, advertising industry, batch processing of sheet metal products industry

Applicable materials: organic glass, PVC board, KT board, wood board, synthetic board, acrylic, metal and other materials

Advantages:

(1) High-power spindle point machine for high-efficiency processing

(2) Compatible with Beijing Jingdiao/Wentai/CAD/Type3/Artcam and other software

(3) The bed and gantry are welded with steel structure seamlessly Machine high temperature aging treatment, strong steel, no deformation.

(4) Engraving machine Z-axis back triangle structure installation technology, guide rail triangle structure layout, greatly reduce the resonance generated by the Z axis, improve the service life of the guide rail slider, and improve the engraving accuracy.

(5) Multiple spindles working at the same time, engraving efficiency greatly improved.

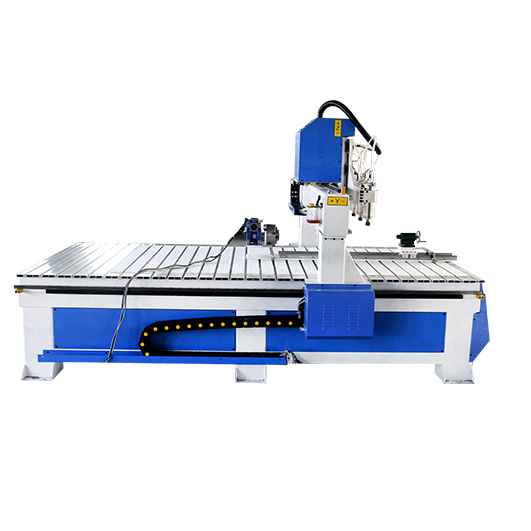

Woodworking CNC Router, SL-1325M(图1)

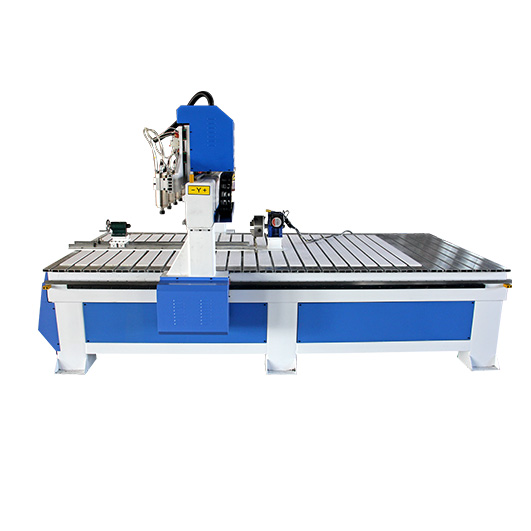

Woodworking CNC Router, SL-1325M(图2)

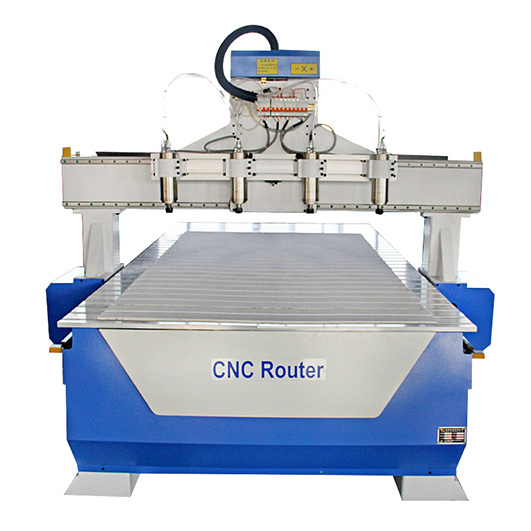

Woodworking CNC Router, SL-1325M(图3)

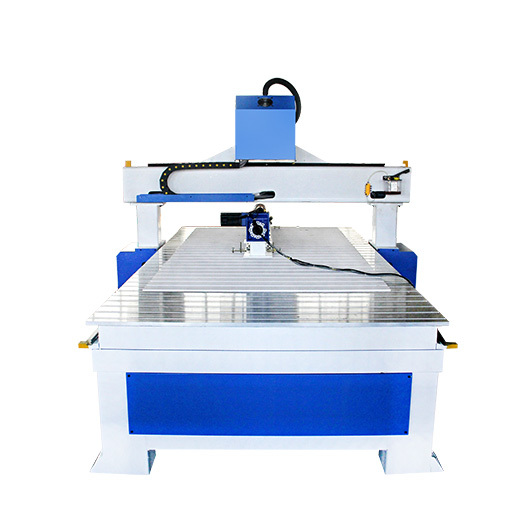

Woodworking CNC Router, SL-1325M(图4)

Product Name/Model	Woodworking CNC Router, SL-1325M
Working size	13002500200mm
Re-position accuracy	＜0.05mm/1000mm
Table/gantry structure	Aluminum T Slot+PVC，Steel pipe gantry
Machine body	Welded with square pipe (with horseshoe)
Motor & Driver	Stepper （Hybrid Servo/Servo are optional）
Spindle Power	2.2KW,3.0KW,5.5KW water/air cooling（optional）
Spindle RPM	6000-24000r/min
Working Voltage	220V 50hz/380V50hz
Command Code	G Code、F/S command is compatible
Max running speed	15M/Min
Transmission mode	Gear wheel for XY axis, ball screw for Z axis
Control system	NcStudio/RichAuto/Mach3(optional)
Frequency Converter	Best
Square mode	20/25 Square Linear Guide Rail（optional）
Material Fixing way	Clamp/Vacuum table (optional)
Dimension	300021001600mm
Weight	1200kg
Machine color	Black and Red /Blue and White(optional)

Woodworking CNC Router, SL-1325M
