Home > Product > Styrofoam Engraving Machine

Polystyrene Foam CNC Router, SL-1325P

Applicable industries: wooden crafts, woodworking furniture, advertising industry, batch processing of sheet metal products industry

Applicable materials: organic glass, PVC board, KT board, wood board, synthetic board, acrylic, metal and other materials

Advantages:

(1) High-power spindle point machine for high-efficiency processing

(2) Compatible with Beijing Jingdiao/Wentai/CAD/Type3/Artcam and other software

(3) The bed and gantry are welded with steel structure seamlessly Machine high temperature aging treatment, strong steel, no deformation.

(4) Engraving machine Z-axis back triangle structure installation technology, guide rail triangle structure layout, greatly reduce the resonance generated by the Z axis, improve the service life of the guide rail slider, and improve the engraving accuracy.

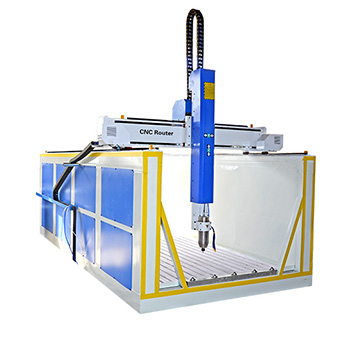

Polystyrene Foam CNC Router, SL-1325P(图1)


Polystyrene Foam CNC Router, SL-1325P(图2)

Polystyrene Foam CNC Router, SL-1325P(图3)




Product Name/Model

Polystyrene Foam CNC Router, SL-1325P

Working  size

1300*2500*800mm

Re-position accuracy

0.05mm/1000mm

Table/gantry structure

Aluminum T Slot+PVC,Steel pipe gantry

Machine body

Welded with square pipe (with horseshoe)

Motor & Driver

Stepper (Hybrid Servo/Servo are optional)

Spindle Power

2.2KW,3.0KW,5.5KW water/air coolingoptional

Spindle RPM

6000-24000r/min

Working Voltage

220V 50hz/380V50hz

Command Code

G Code、F/S command is compatible

Max running speed

15M/Min

Transmission mode

Gear wheel for XY axis, ball screw for Z axis

Control system

NcStudio/RichAuto/Mach3(optional)

Frequency Converter

Best

Square mode

20/25 Square Linear Guide Rail(optional

Material Fixing way

Clamp

Dimension

3000*2000*2000mm

Weight

1000kg

Machine color

Black and Red /Blue and White(optional)
